Find Exactly What You're Looking for With Solr

@aczietlow

Drupal

Create at content management, and serving up that content

Searching out of the box

Let's look under the hood

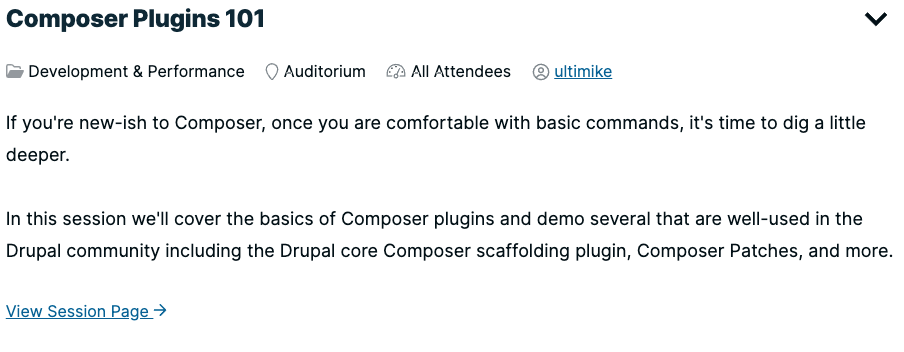

						SELECT * FROM sessions WHERE title = 'Composer Plugins 101';


Database Searches

						SELECT * FROM sessions WHERE title = 'Composer Modules 101';
						SELECT * FROM sessions WHERE title = 'Composer Plugin 101';
						SELECT * FROM sessions WHERE title = 'Comopser Plugins 101';


0 Results found

Database Searches

						SELECT * FROM sessions
						WHERE title LIKE '%composer%'
						AND title LIKE '%plugins%';


Database Searches

						SELECT * FROM sessions
						WHERE title LIKE '%composer%'
						OR title LIKE '%plugins%';


Database Searches

						SELECT * FROM sessions WHERE title = 'Composer Modules 101';
						SELECT * FROM sessions WHERE title = 'Composer Plugin 101';
						SELECT * FROM sessions WHERE title = 'Comopser Plugins 101';


0 Results

						SELECT * FROM sessions
						WHERE title LIKE '%composer%'
						AND title LIKE '%plugins%';


Matched some results, but not as many as we had hoped

						SELECT * FROM sessions
						WHERE title LIKE '%composer%'
						OR title LIKE '%plugins%';


Matched a lot of results, but computationally expensive

Limitations of Searching MySQL

Or any relational database

• Can mostly only do substring matching ('%composer%')
• Can't natively handle spelling mistakes
• Doesn't understand linguistic variations (developing and develop)
• Doesn't understand synonyms (developing and coding)
• Matches unimportant words ("an", "the", "a"
• Doesn't do relevancy of matched results

Limitations of Searching MySQL

						SELECT * FROM sessions
						WHERE title LIKE '%composer%'
						AND title LIKE '%plugins%';


Scalability of this will become an issue as more rows are added to the database

Finding a better search tool: Solr

• Text Centric
• Read first
  • Read way more often than created or updated. Not great for real time data store
• Document Oriented
• Designed for large data volumes
• Flexible Schema

Document-Oriented Storage

• Data of NoSql database
• Data Described as a collection of key:value pairs
• Ex of document are JSON, XML, PDF, etc
• Nodes can be expressed as a single document

{
  "id": "home 1",
  "location": "Charleston, SC",
  "bedrooms": 3,
  "type": "sale"
}


Flexible Schema

• Directly store documents of a similar nature
• Different approach than a relational Database

{
  "id": "home 1",
  "location": "Charleston, SC",
  "mls": 1234566,
  "bedrooms": 3,
  "type": "sale"
}


{
  "id": "home 2",
  "location": "Summerville, SC",
  "bedrooms": 3,
  "type": "rent",
  "rent": 1000
}

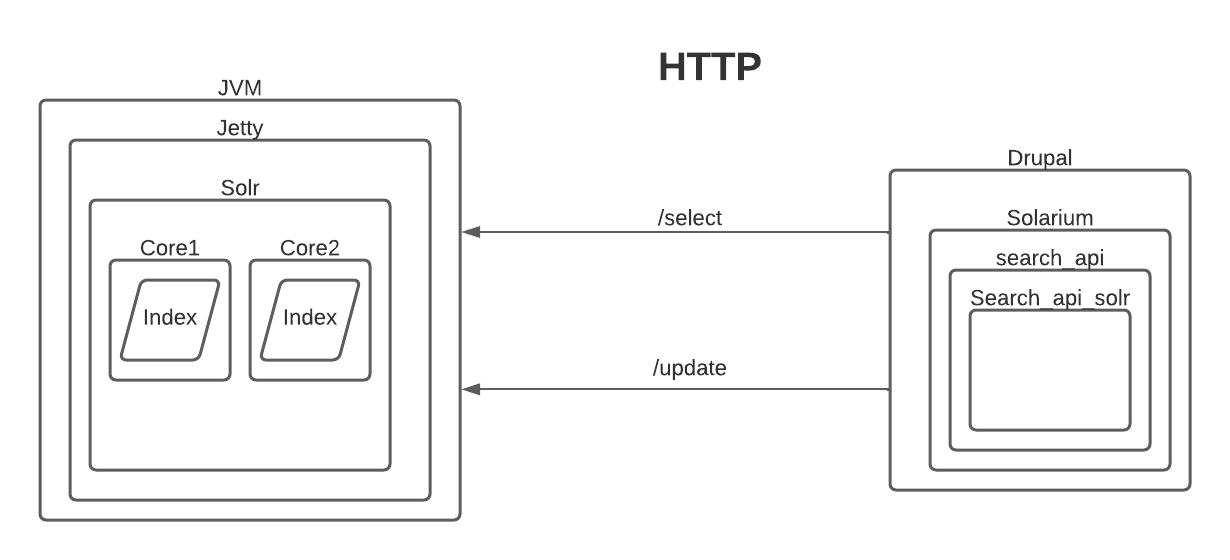

Drupal and Solr

Solarium Documentation

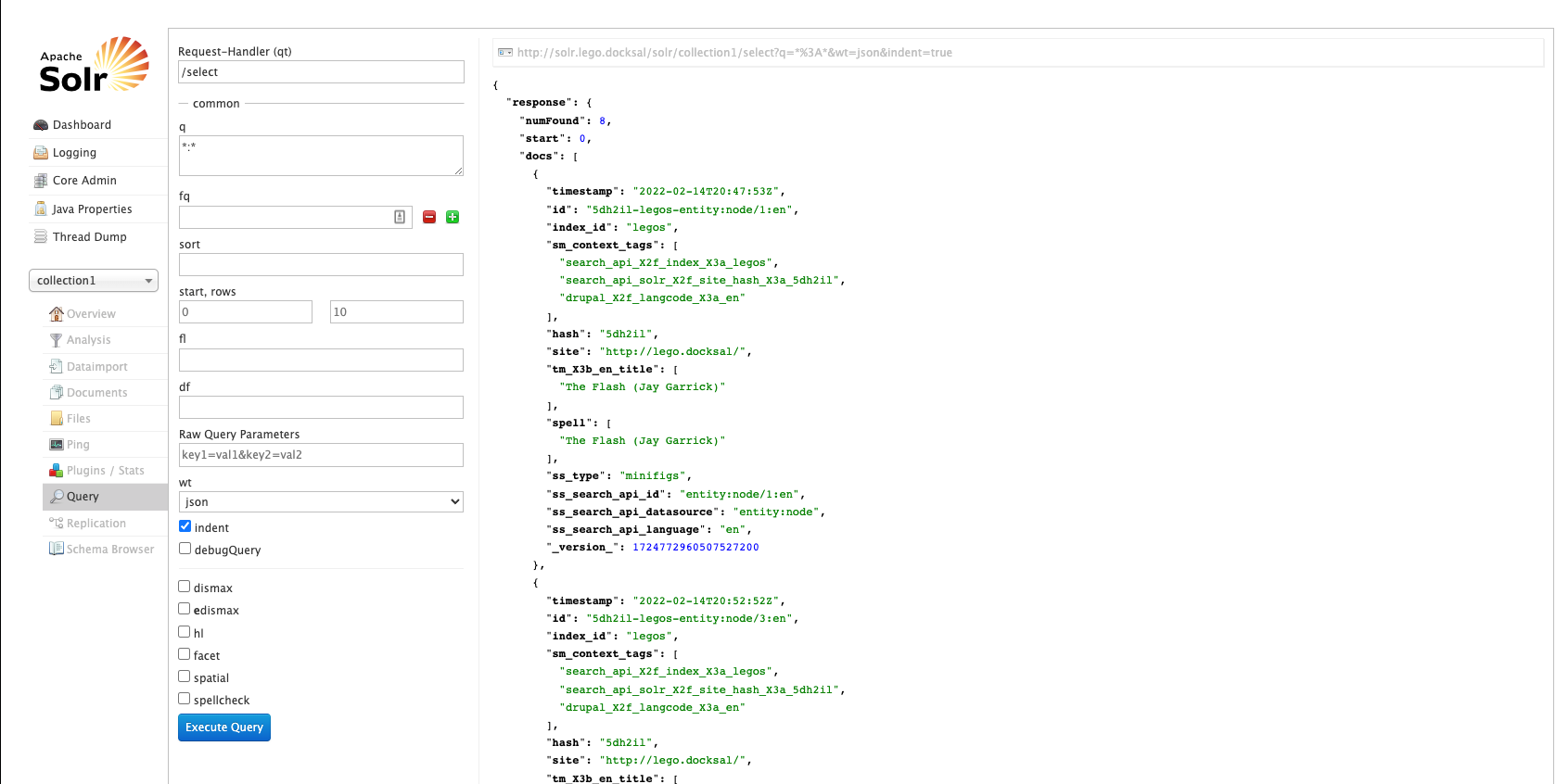

Querying in Solr

q parameter

• "q" Query string
• syntax is `fieldName:value`
• * is a wildcard. So *:* will return all documents
• `fieldName` is optional
• Results returned are ranked by relevancy

fq parameter

• Filter Queries
• Are checks for inclusion or exclusion
• Has no effect on relevancy
• Fast to compute
• Use the syntax of `fieldName:value`

Sort

• Can specify field to sort by
• Syntax `fieldName asc`
• Defaults to relevancy

fl parameter

• Field list
• Syntax is comma separated list of fieldNames
• Useful to reduce the size of requests over the network
• "score" is a field option that is hidden by default
• "*,score" can be used to append the relevancy score to results

df

• Defined field
• Specify field to search the q param when q doesn't provide a field

wt

• writer type
• Formats of returns
• json, xml, python, ruby, php

Review

fq - limits of matching docs

q - limits of matching docs AND calculates relevancy score based on the query parser

Uses of fq

• Filter result of documents into smaller subsets
• Filtered based on machine data without user sanitized input
  • Faster, can be cached on the solr layer
  • Doesn't have to run through the query parser

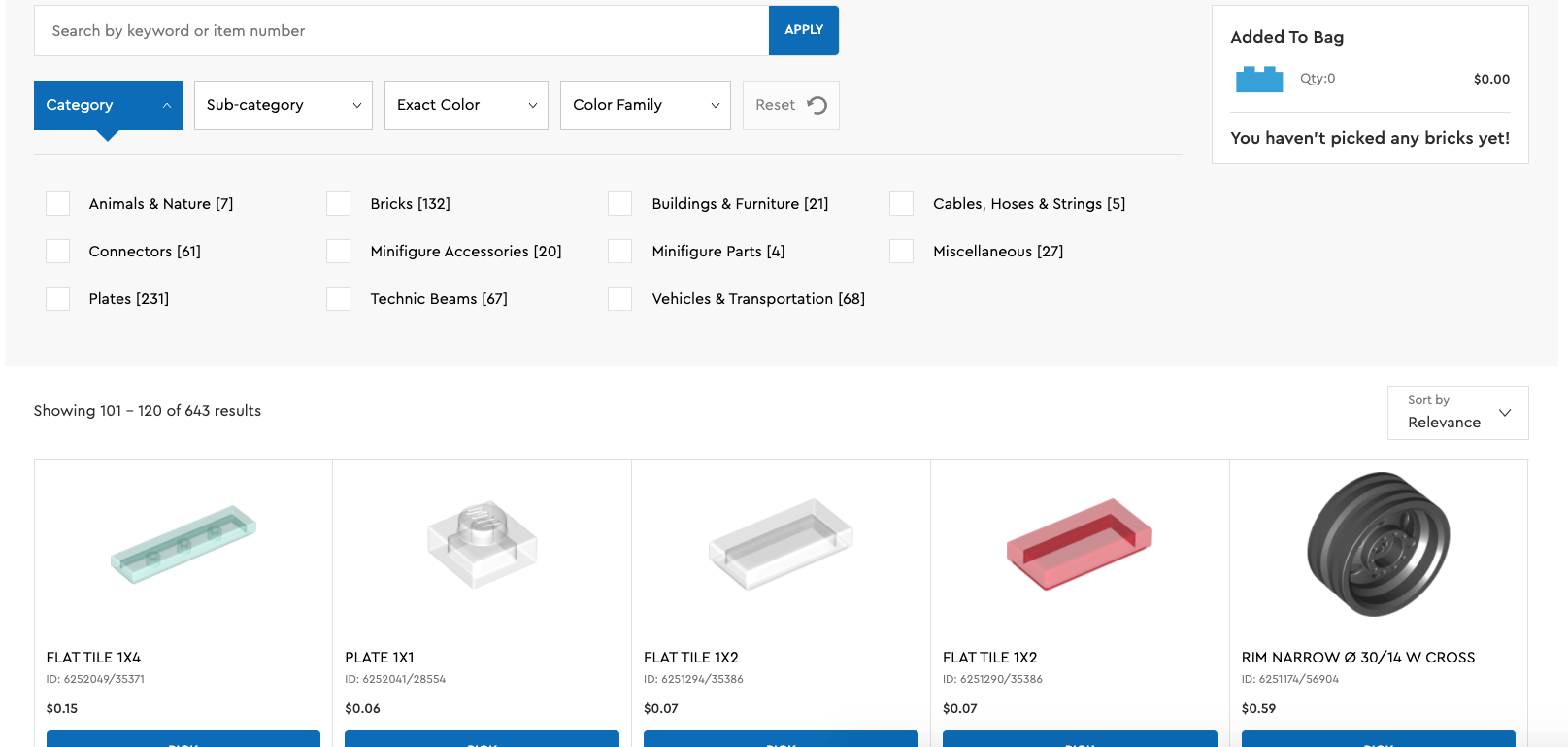

faceted search

• Groups result documents in clusters or groups
• Provides direct user feedback
• Reduces "dead searches"

faceted search

Faceting Types

• Field Faceting
  • Groups by specified fields
• Range Faceting
  • Groups by Ranges, such as price or date ranges
• Query Faceting
  • Groups by secondarily defined queries

Faceting Demos

Interacting with Facets

• It's up to Drupal's front end layer to present facets as links
• To see results of the facets, use an fq parameter based on the field or range from the facet

$client = new Solarium\Client($adapter, $eventDispatcher, $config);

// get a select query instance
$query = $client->createSelect();

// apply settings using the API
$query->setQuery('*:*');
$query->setStart(2)->setRows(20);
$query->setFields(array('id','title','set', 'price'));
$query->addSort('price', $query::SORT_ASC);

// create a filterquery using the API
$fq = $query->createFilterQuery('maxprice')->setQuery('price:[1 TO 300]');

// create a facet field instance and set options using the API
$facetSet = $query->getFacetSet();
$facet = $facetSet->createFacetField('stock')->setField('inStock');

// this executes the query and returns the result
$resultset = $client->select($query);

// display the total number of documents found by Solr
echo 'NumFound: '.$resultset->getNumFound();

// display facet counts
echo 'Facet counts for field "inStock":';
$facet = $resultset->getFacetSet()->getFacet('stock');
foreach ($resultset as $doc) {

| id | title | set | price |
| $doc->id; | $doc->title | $doc->set | $doc->price |

}


Text Analysis

Stop Word Filters

• Removes common words from search input
• "on", "a", "an", "from"

Text Analysis

Stem Filters

• Doesn't need to enter exact form a query term
• handles singular and plural versions of words
• legos == logo, bricks == brick
• Can transform various conjugations into a base term
• running, ran, runs == run
• requires a dictionary file to perform this kind of look ups

Text Analysis

Word Delimiter Graph Filter

• Can split words based on a specified delimiters
• by character: wi-fi == wifi
• by CamelCase: DrupalCoreTests == "drupal", "core", "test"

Text Analysis

There's a lot more available in the documentation
